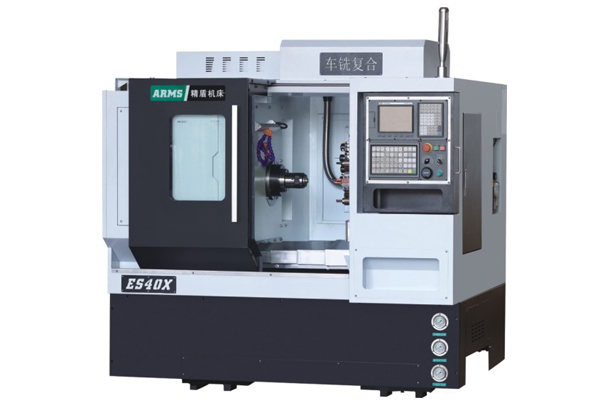

Main technical parameters
Parameter table | ||
Maximum turning diameter on bed | mm | Φ 500 |
Maximum machining diameter | mm | Φ 200 |
Maximum Z-direction travel | mm | 300 |
Maximum machining shaft length (chuck + tailstock) | mm | Within 280 (distance from chuck end face to turret end face) |
Maximum X-direction travel | mm | 750 |
Maximum Y-direction travel | mm | 220 |
Maximum speed | m/min | X:24 Z:24 Y:18 |
Diameter of spindle through hole | mm | Φ 48 |
Nose type of spindle unit | A2-5 | |
Hollow hydraulic rotary cylinder | 536 (passable) Φ Within 36 bars) | |
Spindle motor power | kw | 5.5 servo motor |
Spindle speed | rpm | 5000 |

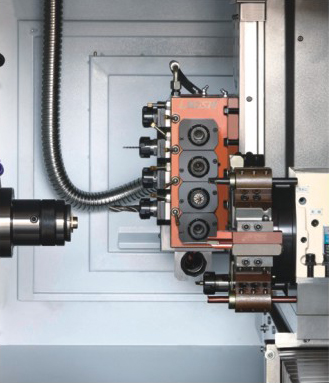

Model of power turret | 63-12t (8 stations) / 6132 four station electric tool rest | |
Square dimension of cylindrical cutter | mm | 20*20 |
Boring tool bar dimensions | mm | Φ 25 |
Specification of power tool holder | ||
Number of end cutterbed | One | 2 |
Number of boring tool holders | One | 2 |
Bmt55 power tool holder | One | |
X, Z, y, turret motor torque | nm | 10NB 10N 7.5NB |
Connection mode of x-direction and Z-direction motors | Direct connection | |
Connection mode of Y-direction motor | Synchronous belt | |
X, Z and Y screw rod specifications | X:3210 Z:4010 Y:2506 | |
Specifications of roller track in X, Z and Y directions | 10: 35 Z: 35 Y: 25 (roller) | |
Maximum stroke of tailstock sleeve | mm | |
Diameter of tailstock sleeve | mm | |
Taper of inner hole of tailstock sleeve | mt | |
Repeat positioning accuracy | mm | 0.003 |
Positioning accuracy (machine tool accuracy) | mm | 0.01 |
Chuck specification | mm | Φ 160 (6 inch) (optional) |
Cooling water pump power | w | 450 high pressure centrifugal pump |
Machine weight | kg | ≈2000 |
Machine tool dimensions (L * w * h) | mm | ≈1900*1700*1900 |
Main configuration
Main configuration | ||
Projects | Brand | Origin |
Numerical control system | New generation 22tb | Taiwan |
Bus servo driver | New generation original | Taiwan |
10. Z, y, b axis absolute value servo motor | New generation original | Taiwan |
Main servo motor (including magnetic ring encoder) | New generation original | Taiwan |
A2-6 spindle unit (4500 revolutions) | SKF Bearing | Sweden |
Track | Yintai | Taiwan |
Ball screw (grade C3) | Yintai | Taiwan |
Lead screw bearing | NSK/NTN | Japan |
Main electrical components | Schneider | Germany |
852 hollow rotary cylinder | Bedford | Domestic |
8-inch hollow hydraulic three jaw chuck | Bedford | Domestic |
2kW Taiwan spline pump hydraulic station | Jingdun special | Domestic |
Cooling water pump 450W | Nork | Taiwan investment |
Automatic lubrication pump (gear pump) | Sheng Xiang | Taiwan investment |
Inner guard | Central / Hongwang | Taiwan investment |
Screw coupling | Hongwang | Taiwan |
Y-axis lifting 80-12t power turret | Lianchen | Taiwan |
Power turret output motor and drive | New generation original | Taiwan |
Heat exchanger | Jingwo | Domestic |
Hand wheel | Zhehong | Domestic |
Foot switch | Tiande | Taiwan |
Switching power supply | Mingwei | Taiwan |
Button | Congratulatory message | Taiwan |
Hydraulic disc brake | Dongpei | Taiwan |
