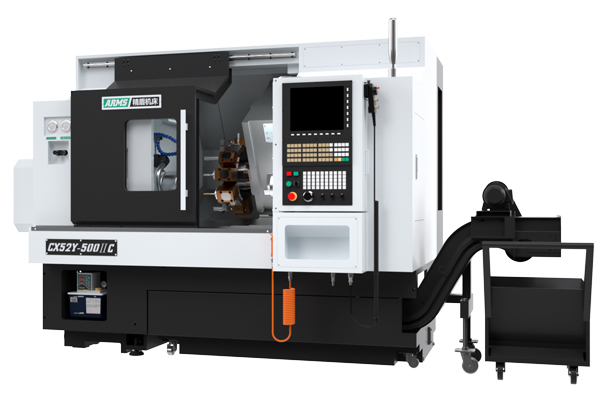

Main technical parameters
Parameter table | ||
Maximum turning diameter on bed | mm | Φ 600 |
Maximum machining diameter | mm | Φ 200 |
Maximum Z-direction travel | mm | 450 |
Maximum machining shaft length (chuck + tailstock) | mm | Within 450 (distance from chuck end face to end face of cutter tower) |
Maximum X-direction travel | mm | 150 (radius value) |
Maximum Y-direction travel | mm | 100( ± 50) |
Maximum speed | m/min | X:30 Z:30 Y:30 B:8 |
Diameter of spindle through hole | mm | Φ 66 (optional Φ 79) |
Nose type of spindle unit | A2-6 | |
Nose end form / through hole diameter of auxiliary spindle unit | A2-5/ Φ 56 | |
Hollow hydraulic rotary cylinder: Main / secondary spindle | 852 (accessible Φ Rod material within 52) /536 | |
Motor power of main shaft / auxiliary spindle | kw | 7.5-11 servo motor / 5.5-7.5 electric spindle |
Spindle / secondary spindle speed | rpm | 4500/5000 |

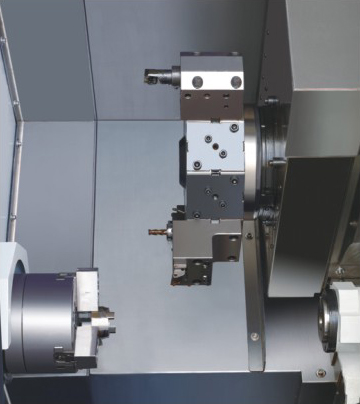

Model of power turret | 80-12T | |
Square dimension of cylindrical cutter | mm | 25*25 |
Boring tool bar dimensions | mm | Φ 32 |
Specification of power tool holder | BMT55 | |
Number of end cutterbed | One | 3 |
Number of boring tool holders | One | 3 |
Bmt55 power tool holder | One | 4 (90 degrees 2, 0 degrees 2) |
Torque of X-direction, Z-direction, Y direction, B direction and cutter tower motor | nm | 11NB 11N 11NB 11N 15N |
Connection mode of x-direction and Z-direction motors | Direct connection | |
Connection mode of Y-direction motor | Synchronous belt | |
Specification of X-direction, Z-direction, y-direction and b-direction screw rod | X:3210 Z:4010 Y:4010 B:3210 | |
X-direction, Z-direction, y-direction, b-direction roller rail specification | X:35 Z:45 Y:35 B:30 | |
Travel of secondary spindle | mm | 420 |
Repeat positioning accuracy | mm | 0.003 |
Positioning accuracy (machine tool accuracy) | mm | 0.01 |
Chuck specification: spindle / sub spindle | mm | Φ 200 (8 inches)/ Φ 160 (6 inches) |
Cooling water pump power | w | 450 high pressure centrifugal pump |
Machine weight | kg | ≈4000 |
Machine tool dimensions (L * w * h) | mm | About 2700 * 1880 * 2050 (excluding chip conveyor) |
Main configuration
Main configuration | ||
Projects | Brand | Origin |
CNC system (15 inch) | New generation 22tb | Taiwan |
Bus servo driver | New generation original | Taiwan |
10. Z, y, b axis absolute value servo motor | New generation original | Taiwan |
Main servo motor (including magnetic ring encoder) | New generation original | Taiwan |
A2-6 spindle unit (4500 revolutions) | SKF Bearing | Sweden |
A2-5 auxiliary spindle (5000 rpm motorized spindle) | NTN bearing (new generation drive) | Japan |
Track | Yintai | Taiwan |
Ball screw (grade C3) | Yintai | Taiwan |
Lead screw bearing | NSK/NTN | Japan |
Main electrical components | Schneider | Germany |
852 / 536 hollow rotary cylinder | Bedford | Domestic |
8 inch / 6 inch hollow hydraulic three jaw chuck | Bedford | Domestic |
2kW Taiwan spline pump hydraulic station | Jingdun special | Domestic |
Cooling water pump 450W | Nork | Taiwan investment |
Automatic lubrication pump (gear pump) | Sheng Xiang | Taiwan investment |
Inner guard | Central / Hongwang | Taiwan investment |
Screw coupling | Hongwang | Taiwan |
Y-axis lifting 80-12t power turret | Lianchen | Taiwan |
Power turret output motor and drive | New generation original | Taiwan |
Heat exchanger | Jingwo | Domestic |
Hand wheel | Zhehong | Domestic |
Foot switch | Tiande | Taiwan |
Switching power supply | Mingwei | Taiwan |
Button | Congratulatory message | Taiwan |
Hydraulic disc brake | Dongpei | Taiwan |
