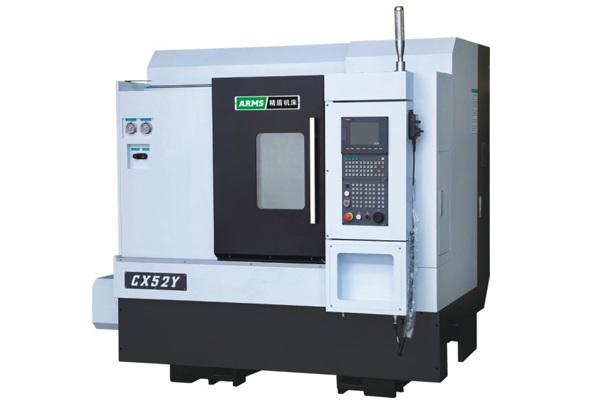

Main technical parameters
Parameter table | ||
Maximum turning diameter on bed | mm | Φ 600 |
Maximum machining diameter | mm | Φ 220 |
Maximum Z-direction travel | mm | 550 |
Maximum machining shaft length (chuck + tailstock) | mm | Within 300 (distance from chuck end face to end face of cutter tower) |
Maximum X-direction travel | mm | 160 (radius value) |
Maximum Y-direction travel | mm | 100( ± 50) |
Maximum speed | m/min | X:30 Z:30 Y:30 |
Diameter of spindle through hole | mm | Φ 66 (optional) Φ 79) |
Nose type of spindle unit | A2-6 | |
Hollow hydraulic rotary cylinder | 852 (accessible) Φ Within 52 bar) | |
Spindle motor power | kw | 7.5/11 servo motor |
Spindle speed | rpm | 4500 |
Model of power turret | 80-12T | |
Square dimension of cylindrical cutter | mm | 25*25 |
Boring tool bar dimensions | mm | Φ 32 |
Specification of power tool holder | BMT55 | |
Number of end cutterbed | One | 3 |
Number of boring tool holders | One | 3 |
Bmt55 power tool holder | One | 4 (2 at 90 degree, 2 at 0 degree) |
X, Z, y, turret motor torque | nm | 11NB 11N 11NB 15N |
Connection mode of x-direction and Z-direction motors | Direct connection | |
Connection mode of Y-direction motor | Synchronous belt | |
X, Z and Y screw rod specifications | X:3210 Z:4010 Y:4010 | |
Specifications of roller track in X, Z and Y directions | X:35 Z:45 Y:35 | |
Maximum stroke of tailstock sleeve | mm | 90 |
Diameter of tailstock sleeve | mm | Φ 70 |
Taper of inner hole of tailstock sleeve | mt | NO.4 |
Repeat positioning accuracy | mm | 0.003 |
Positioning accuracy (machine tool accuracy) | mm | 0.01 |
Chuck specification | mm | Φ 200 (8 inches) |
Cooling water pump power | w | 450 high pressure centrifugal pump |
Machine weight | kg | ≈3200 |
Machine tool dimensions (L * w * h) | mm | About 2000 (2265) *1700*2075 (excluding chip conveyor) |
Main configuration
Main configuration | ||
Projects | Brand | Origin |
Numerical control system | New generation 22tb | Taiwan |
Bus servo driver | New generation original | Taiwan |
10. Z, y, b axis absolute value servo motor | New generation original | Taiwan |
Main servo motor (including magnetic ring encoder) | New generation original | Taiwan |
A2-6 spindle unit (4500 revolutions) | SKF Bearing | Sweden |
Track | Yintai | Taiwan |
Ball screw (grade C3) | Yintai | Taiwan |
Lead screw bearing | NSK/NTN | Japan |
Main electrical components | Schneider | Germany |
852 hollow rotary cylinder | Bedford | Domestic |
8-inch hollow hydraulic three jaw chuck | Bedford | Domestic |
2kW Taiwan spline pump hydraulic station | Jingdun special | Domestic |
Cooling water pump 450W | Nork | Taiwan investment |
Automatic lubrication pump (gear pump) | Sheng Xiang | Taiwan investment |
Inner guard | Central / Hongwang | Taiwan investment |
Screw coupling | Hongwang | Taiwan |
Y-axis lifting 80-12t power turret | Lianchen | Taiwan |
Power turret output motor and drive | New generation original | Taiwan |
Heat exchanger | Jingwo | Domestic |
Hand wheel | Zhehong | Domestic |
Foot switch | Tiande | Taiwan |
Switching power supply | Mingwei | Taiwan |
Button | Congratulatory message | Taiwan |
Hydraulic disc brake | Dongpei | Taiwan |
