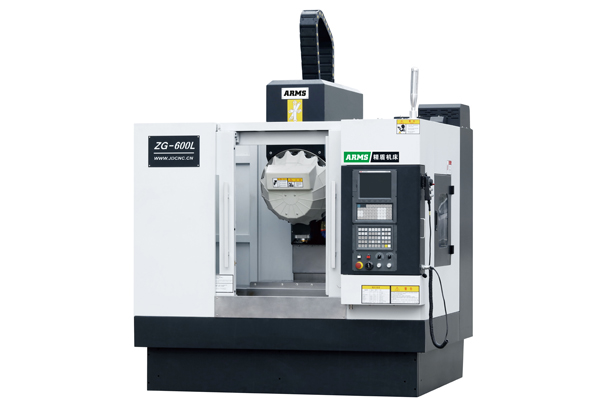

Main technical parameters
Parameter table | ||
Table size | mm | 700*380 |
T-groove of worktable | mm | 3-18-120 |
Bearing capacity of worktable | kg | 400 |
Maximum stroke of x-axis | mm | 600 |
Maximum stroke of y-axis | mm | 400 |
Maximum stroke of z-axis | mm | 450 |
Distance between spindle center and column guide rail | mm | 430 |
Distance between spindle end face and worktable | mm | 50/500 |
Model of spindle taper hole | BT30 | |
Spindle speed | rpm | 8000/10000/12000 (direct) |
Spindle motor power | mm | 4.0 |
Spindle servo motor torque (x / Y / z) | mm | 7.7N/7.7N/10NB |
Three axis connection mode | Direct connection | |
Specification of three axis ball screw | 3212 | |
Specification of three axis linear guide (x / Y / z) | 30/30/30 | |
Three axis feed rate | mm/min | 20-15000 |
Three axis fast moving speed | m/min | 48 |
Three axis positioning accuracy | mm | 0.01 |
Three axis repeat positioning accuracy | mm | 0.006 |
Cooling water pump power | W | 450 |
Machine weight | kg | ≈3800 |
Machine tool dimensions (L * w * h) | mm | ≈2400*2000*2200 |
Main configuration
Main configuration |
New generation 21ma system in Taiwan or knd210mc2i system in Beijing |
Resin sand casting (Taiwan funded) |
Spindle (Taiwan) |
Ball screw and precision nut grade C3 (Taiwan) |
Knife jar (Taiwan) |
Linear guide (Taiwan) |
Screw rod bearing (imported NSK) |
Coupling (imported) |
Rail guard (Taiwan) |
Electric lubrication system (domestic famous brand) |
High pressure cooling water pump (domestic famous brand) |
Spindle synchronous belt (Taiwan) |
16 position disc magazine (Taiwan) |
Main electrical components (Schneider, Germany) |
Main pneumatic components (Taiwan Yadeke) |
Release button (Taiwan) |
Cooling system of electrical box (domestic famous brand) |
