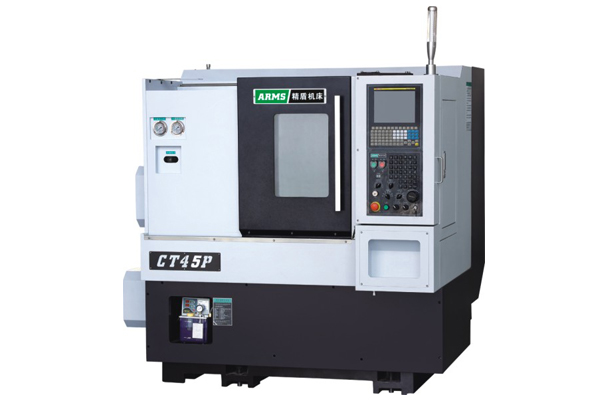

Main technical parameters
Parameter table | ||
Maximum spin diameter | mm | Φ 550 |
Maximum machining diameter and length | mm | 360 (length) |
Bar operation capability | mm | Φ 45 |
Spindle revolution | rpm | 5000 |
Spindle end form | ASA | A2-5 |
Spindle through hole | mm | Φ 56 |
Stroke (x / z) | mm | 750/360 |
Rapid feed rate | m/min | 30/30 |
Number of tool positions | EA | Row knife (6 pieces) |
Boring bar diameter | mm | Φ 25/ Φ 32 |
Tool position and body size | mm | 20 × 20 |
Specification of x-direction and Z-direction screw rod | X:3210 Z:3210 | |
X-direction and Z-direction track specifications | X:30 Z:35 | |
Tailstock travel | EA | |
Taper hole of tailstock sleeve | mm | Passing through the carriage Φ 180 |
Tailstock sleeve stroke | mm | |
Spindle motor (continuous / 30) | kw | 5.5/7.5 |
Bidirectional positioning accuracy (machine tool accuracy) | mm | 0.008 |
Bidirectional repeat positioning accuracy | mm | 0.003 |
Lubrication pump | W/C | 20 |
Cooling pump | kw | 0.25 |
Power capacity | kVA | 8 |
Chuck size | inch | Φ 160 (6 inches) |
Total mechanical weight | Kg | 2500 |
Machine tool dimensions (L * w * h) | mm | 1660(1900)*1700*1750 |
Main configuration
Main configuration | ||
Projects | Brand | Origin |
Numerical control system | New generation 6ta-e | Taiwan |
Bus servo driver | New generation original | Taiwan |
10. Z-axis absolute value servo motor | New generation original | Taiwan |
Main servo motor (7.5kw-1000) | Alpha | Shenzhen |
A2-6 spindle | NSK bearing | Japan |
Track | THK | Japan |
Ball screw (grade C3) | Yintai | Taiwan |
Screw rod bearing | NSK/NTN | Japan |
Main electrical components | Schneider | Germany |
852 hollow rotary cylinder | Bedford | Domestic |
8-inch hollow hydraulic three jaw chuck | Bedford | Domestic |
2.0kw Taiwan spline pump hydraulic station | Jingdun special | |
Cooling water pump 450W | Nork | Taiwan investment |
Automatic lubrication pump (gear pump) | Sheng Xiang | Taiwan investment |
Inner guard | Central | Taiwan investment |
Screw coupling | Hongwang | Taiwan |
100-8t servo turret (25 cubic meters) | Cheng Xin | Taiwan |
Heat exchanger | Jingwo | Domestic |
Hydraulic tailstock | Jingdun special | |
Equipped with Siemens 808d system, x, Z axis motor and driver are Siemens original | ||
Equipped with Mitsubishi e80a system, x-axis and z-axis motors and drivers are original made by Mitsubishi | ||
Equipped with FANUC 0I TF system, x-axis and z-axis motors and drivers are original FANUC |

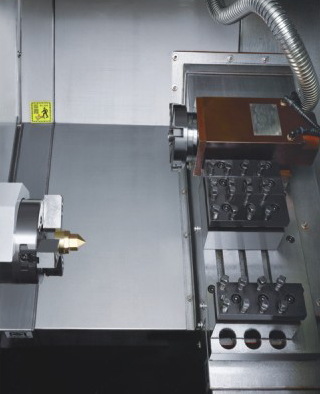

Local display
