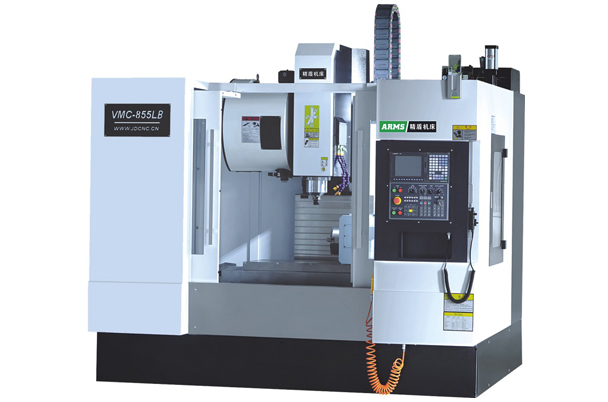

VMC855LB The machining center is mainly used for the processing of medium-sized parts and moulds. After the workpiece is clamped once, it can continuously finish milling, drilling, tapping, boring, and twisting, and can be used by one or more assembly lines. It has the characteristics of strong cutting, high-speed positioning, mechatronics, automatic chip removal, safety protection and convenient operation.
Main technical parameters
Parameter table | ||
Table size | mm | 1000*550 |
T-groove of worktable | mm | 5-18-80 |
Bearing capacity of worktable | kg | 500 |
Maximum stroke of x-axis | mm | 800 |
Maximum stroke of y-axis | mm | 550 |
Maximum stroke of z-axis | mm | 550 |
Distance between spindle center and column guide rail | mm | 595 |
Distance between spindle end face and worktable | mm | 120/670 |
Model of spindle taper hole | BT40 | |
Spindle speed | rpm | 8000/10000/12000 |
Spindle motor power | mm | 7.5 |
Spindle servo motor torque (x / Y / z) | mm | 10N/10N/15NB |
Three axis connection mode | Direct connection | |
Specification of three axis ball screw | 4016 | |
Specification of three axis linear guide (x / Y / z) | 35/45/45 | |
Three axis feed rate | mm/min | 20-15000 |
Three axis fast moving speed | m/min | 48 |
Three axis positioning accuracy | mm | 0.01 |
Three axis repeat positioning accuracy | mm | 0.006 |
Cooling water pump power | W | 450 |
Machine weight | kg | ≈5000 |
Machine tool dimensions (L * w * h) | mm | ≈2500*2700*2500 |
Main configuration
Main configuration |
Sanling m80b system / FANUC Oi mate MF |
Resin sand casting (joint venture) |
Spindle (Taiwan) |
Ball screw and precision nut grade C3 (Taiwan) |
Knife jar (Taiwan) |
Linear guide (Taiwan) |
Screw rod bearing (imported NSK) |
Coupling (imported) |
Rail guard (Taiwan) |
Electric lubrication system (domestic famous brand) |
High pressure cooling water pump (domestic famous brand) |
Spindle synchronous belt (Taiwan) |
24 position disc magazine (Taiwan) |
Main electrical components (Schneider, Germany) |
Main pneumatic components (Taiwan Yadeke) |
Release button (Taiwan) |
Cooling system of electrical box (domestic famous brand) |

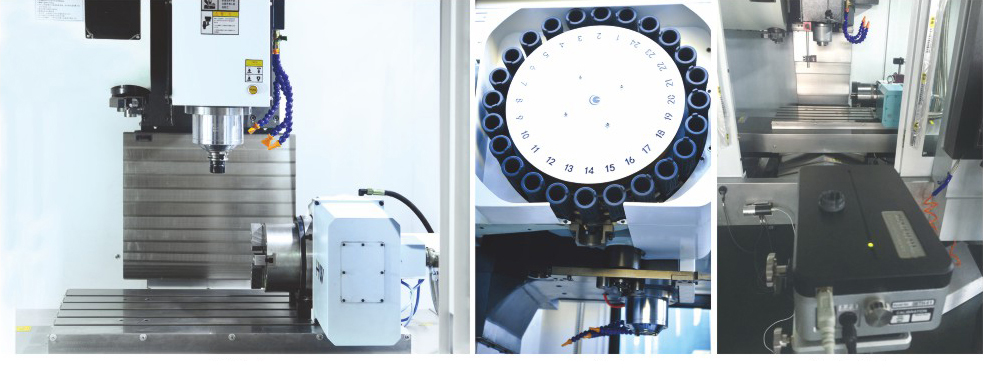

Local display

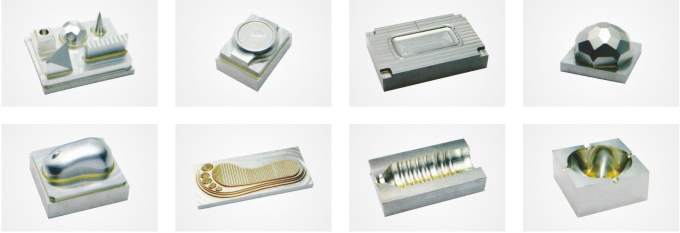

Some product processing cases
